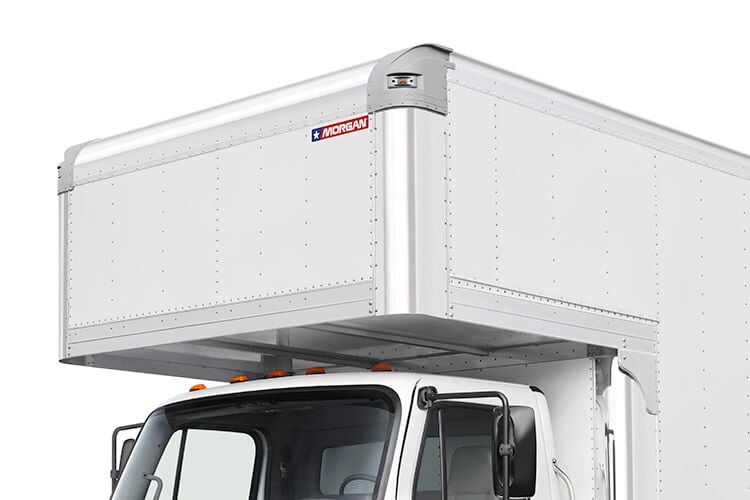

Aerodynamic/Light Weight
Aerodynamic design and lightweight construction help reduce wind resistance and overall weight for greater operating efficiency.

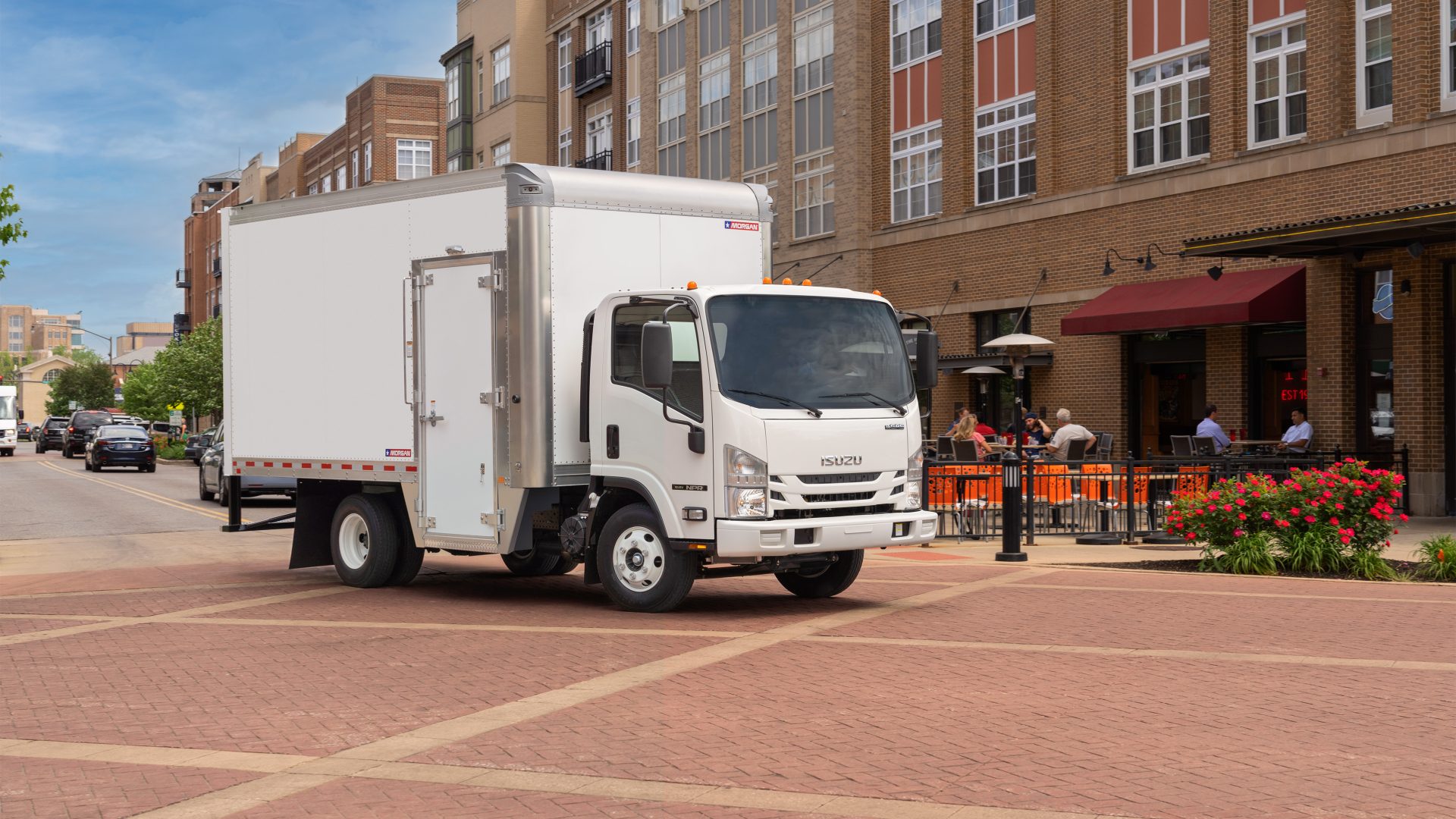

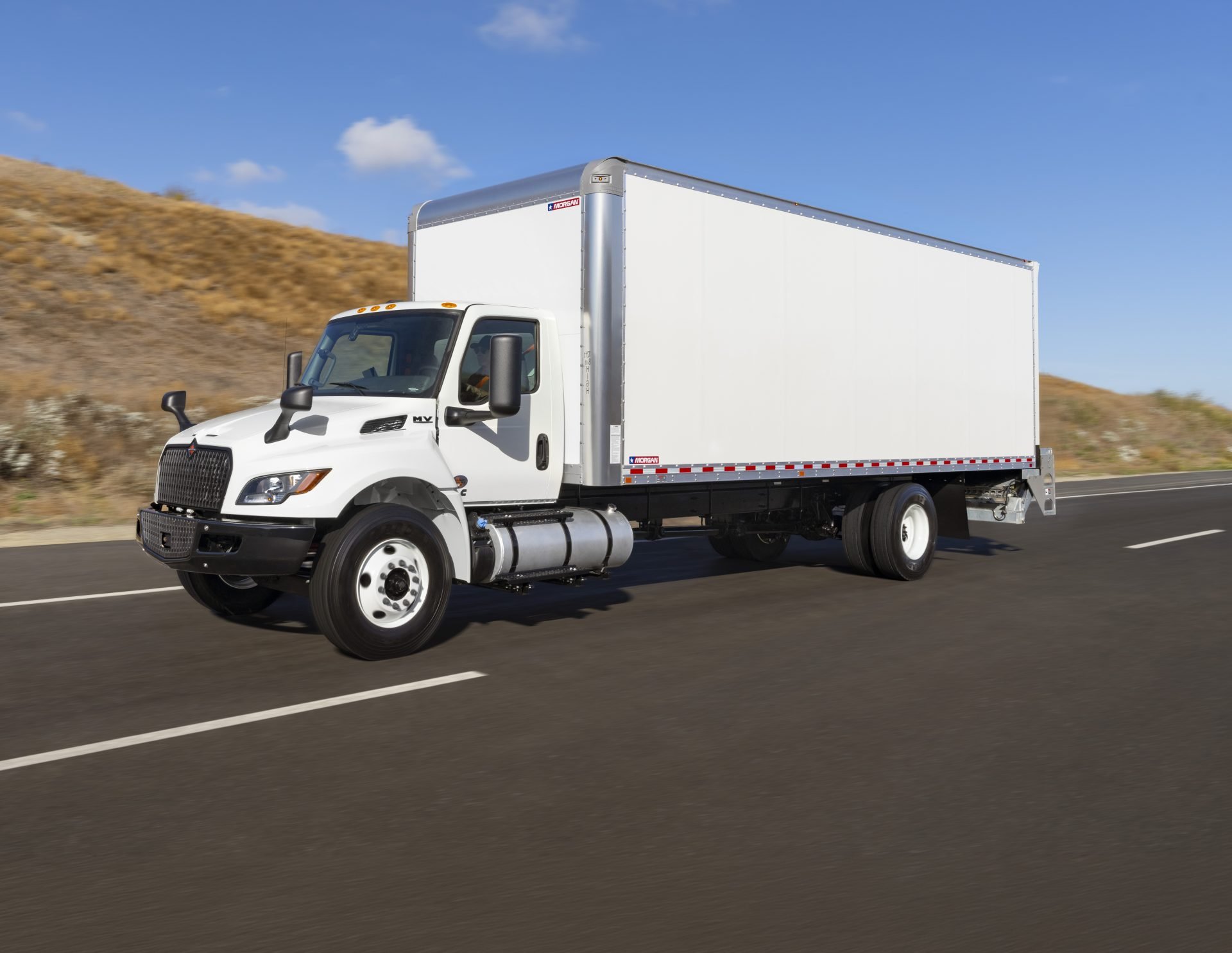

Gold Star

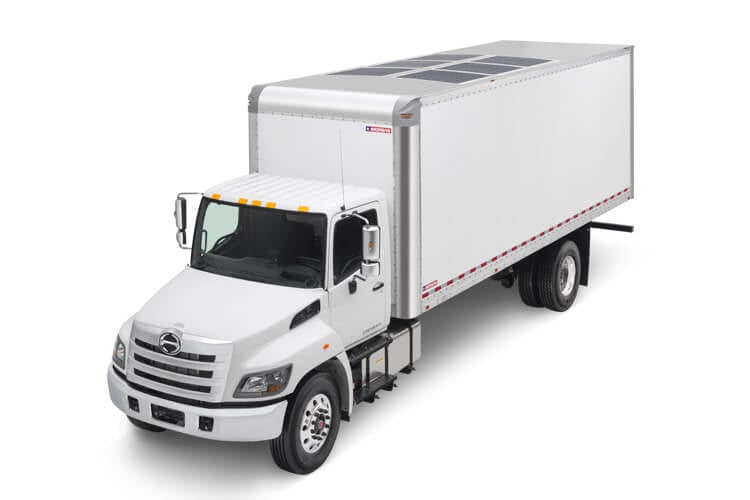

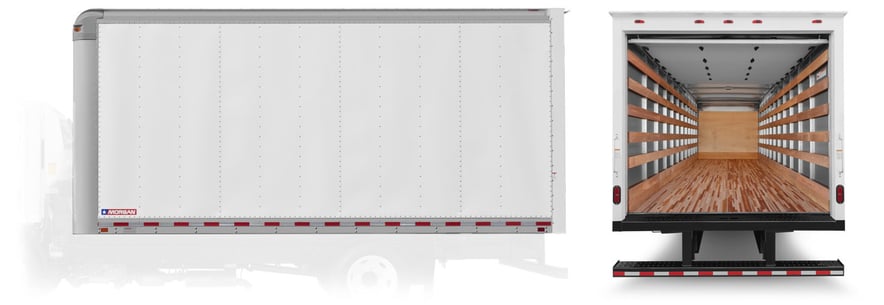

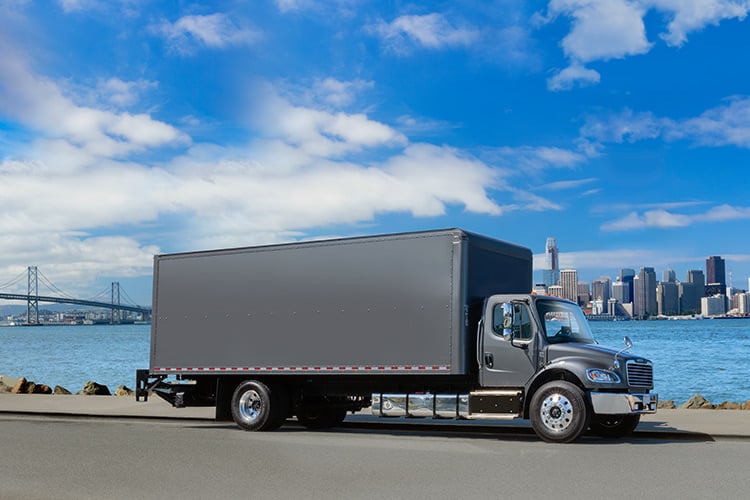

Dry Freight Bodies Built to Keep Business Moving
Every Mile. Every Delivery. Every Customer. Every Day.
Your dry freight truck body carries more than cargo - it carries your reputation, your commitments and your livelihood. That's why Morgan Dry Freight bodies are built to perform when the work gets tough, the miles add up and your customers are counting on you.
Strength and Durability
Proven construction delivers lasting strength and durability, providing dependable performance for the demands of everyday work.

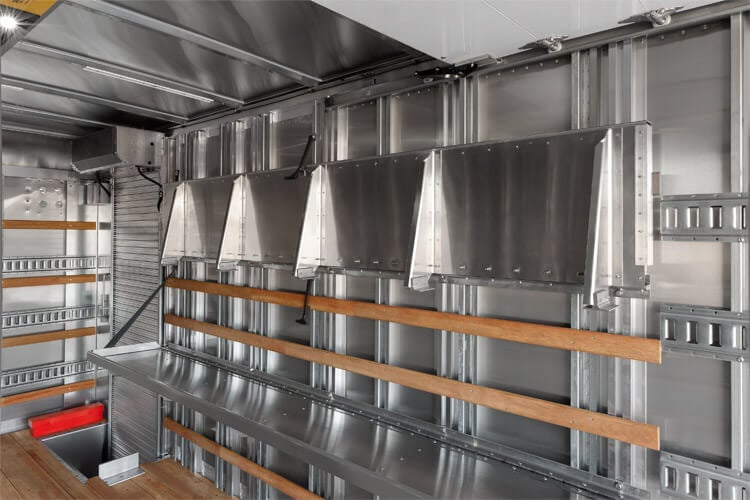

Customization
Flexible body configurations, materials and options make it easy to customize your Gold Star to fit your cargo, application and operation.

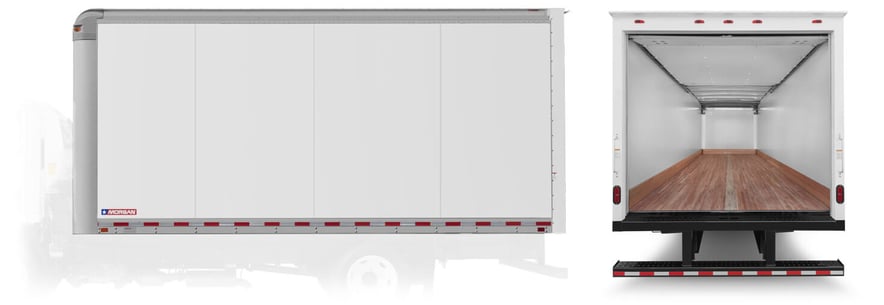

The Industry Standard for Dry Freight Bodies
Aerodynamic. Durable. Adaptable. Customizable.
Improved fuel efficiency saves you money.

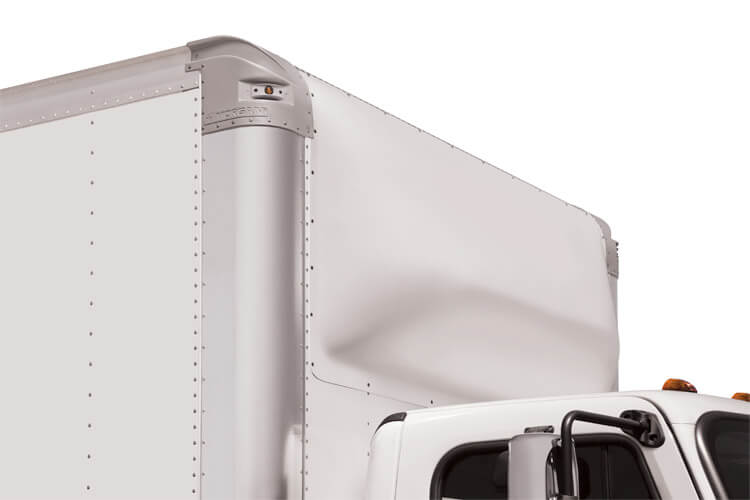

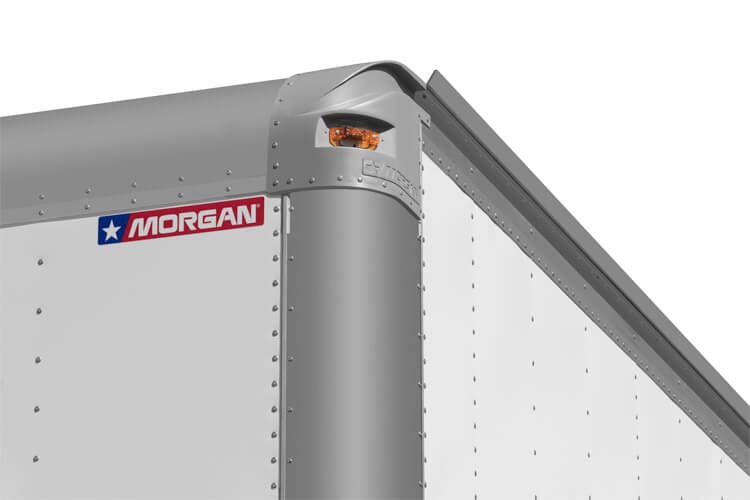

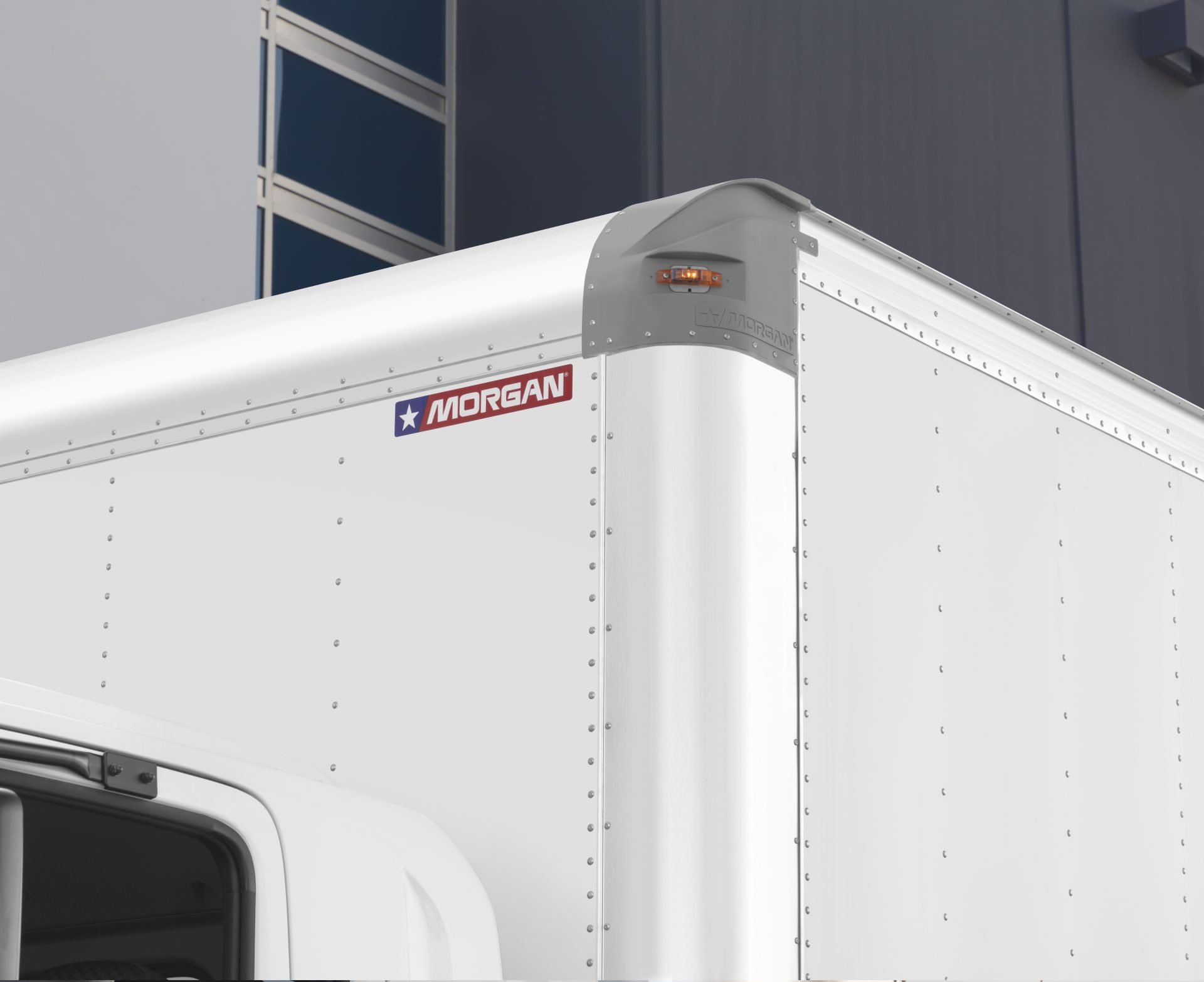

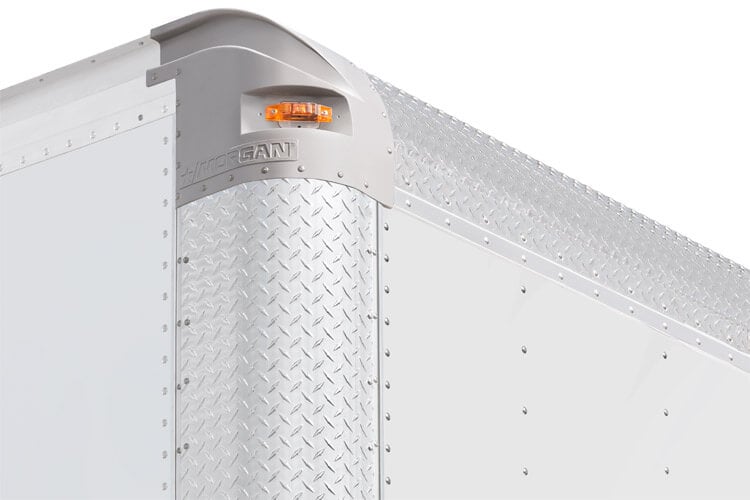

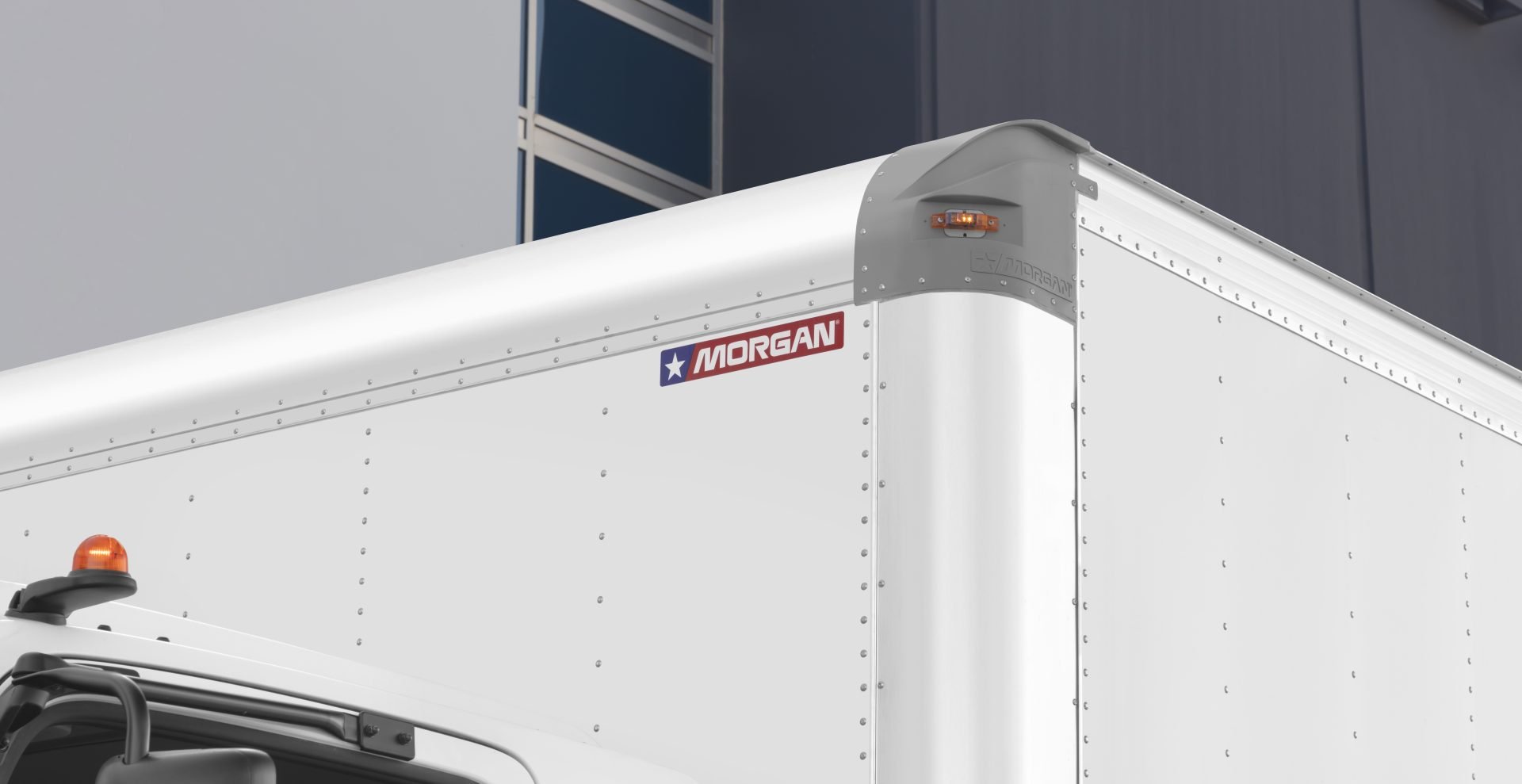

That's why Morgan's Gold Star dry freight bodies feature aerodynamic front-end design that reduces wind-resistance and decreases fuel-consumption. Morgan's patented poly-tuff corner caps also add up to greater durability and resistance to the elements for better protection of your truck body, and your payload.

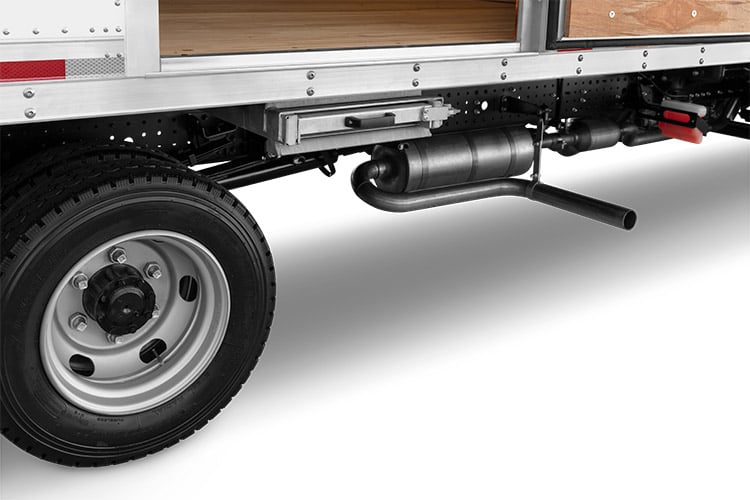

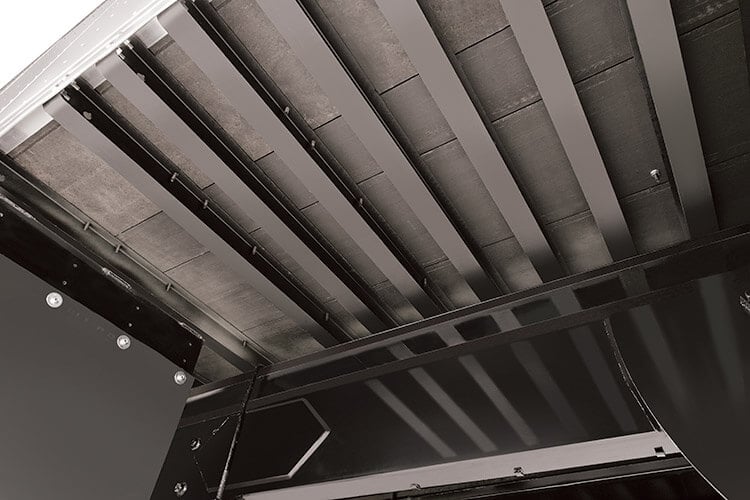

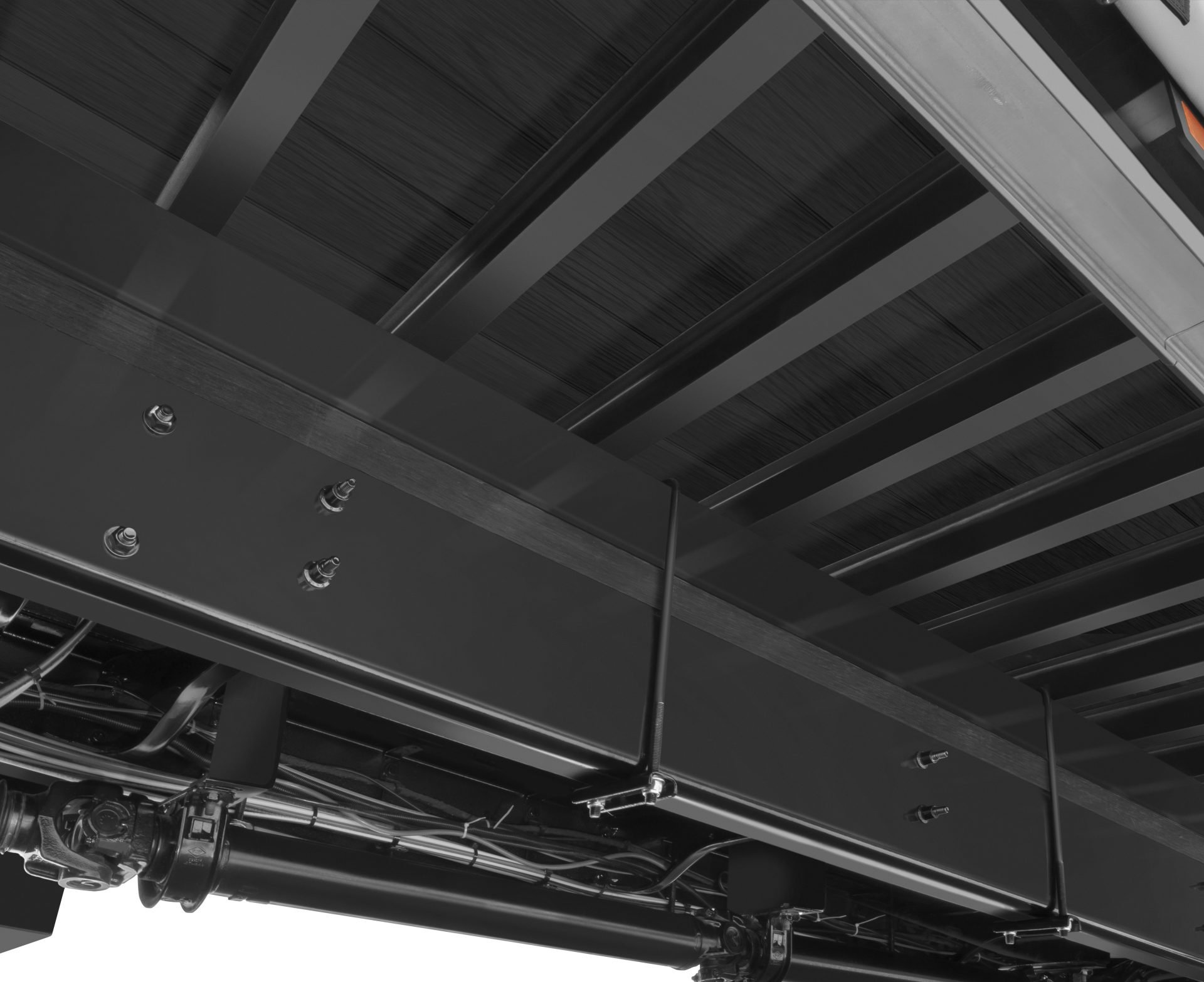

Subframe
Wording to come

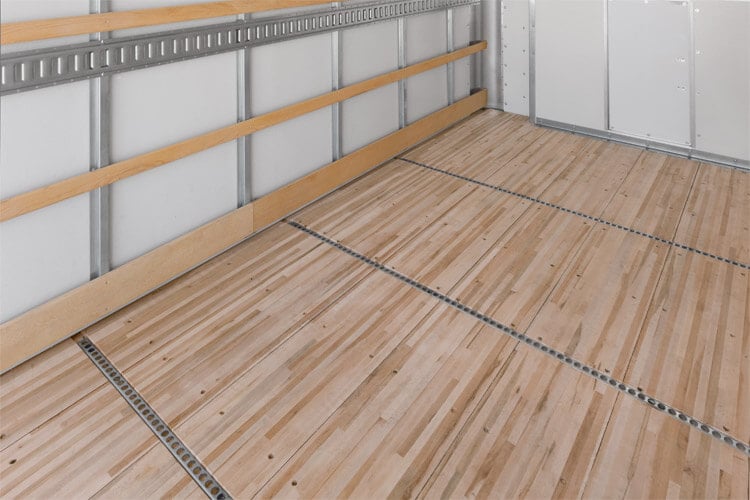

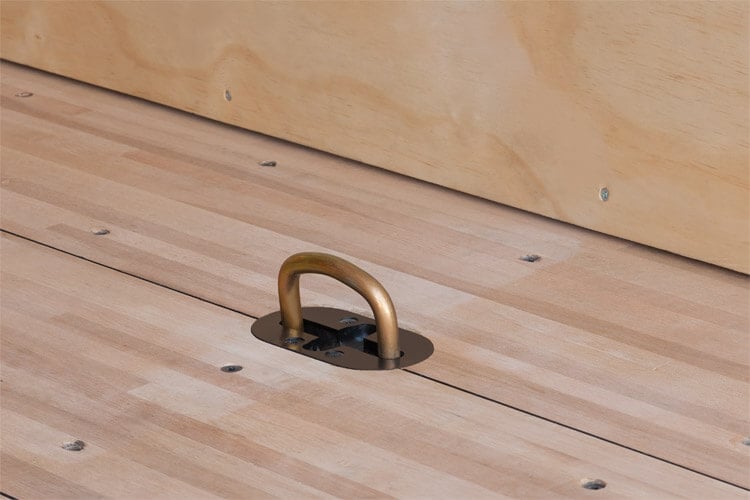

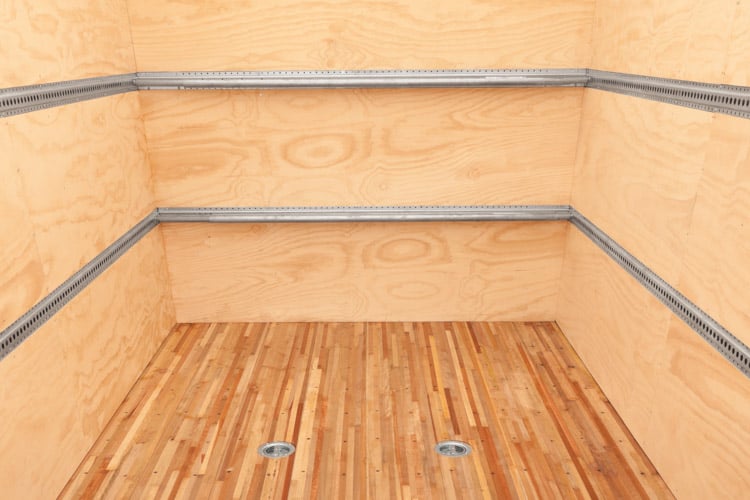

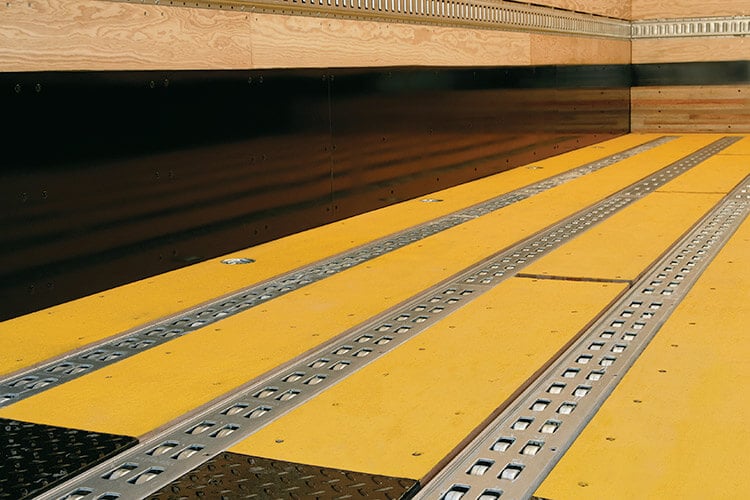

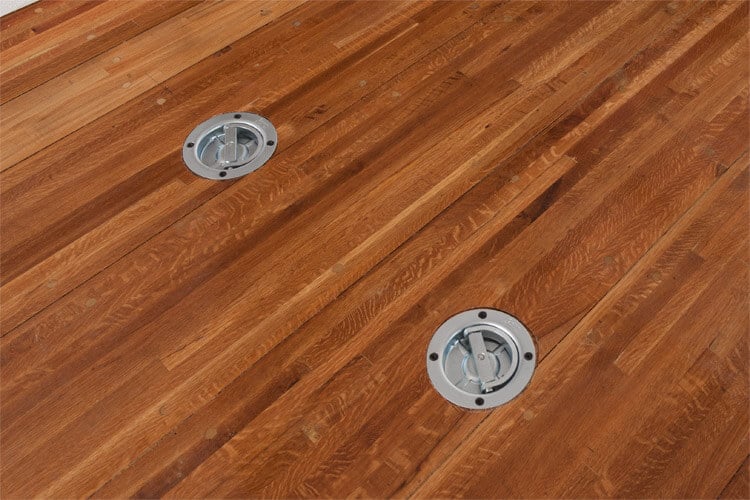

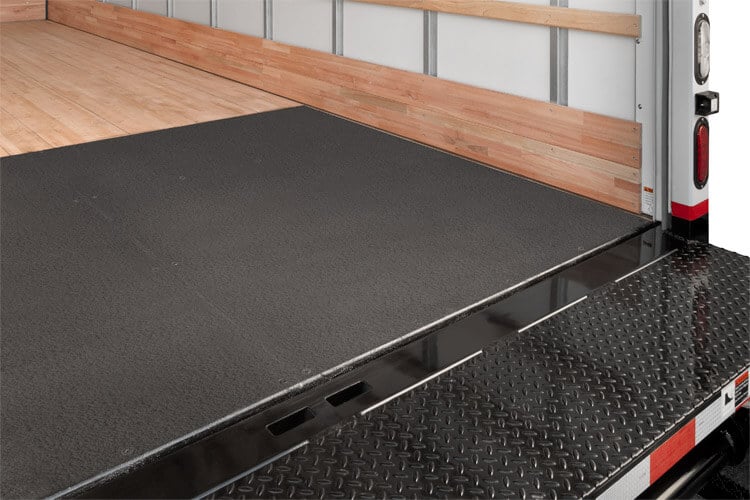

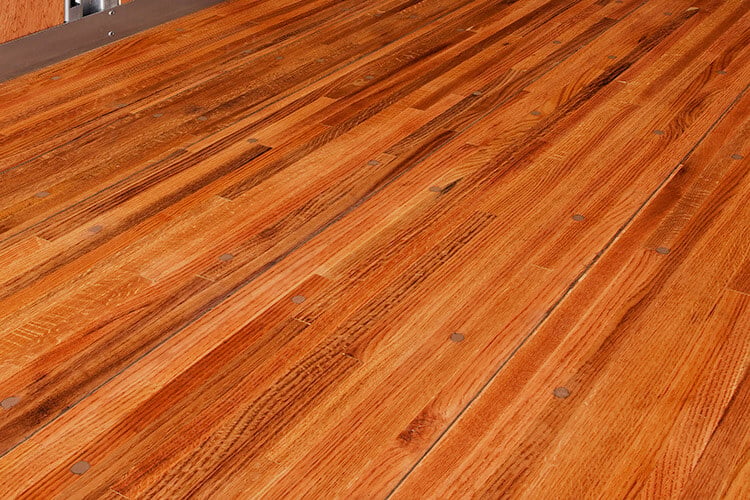

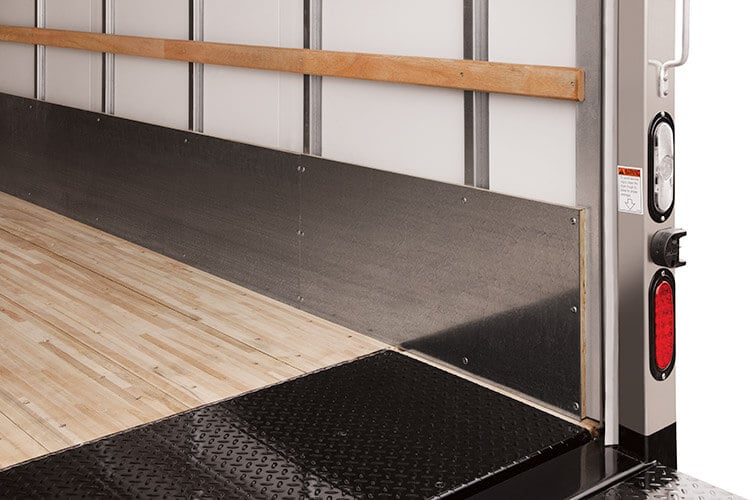

Floor Type
Wording to come

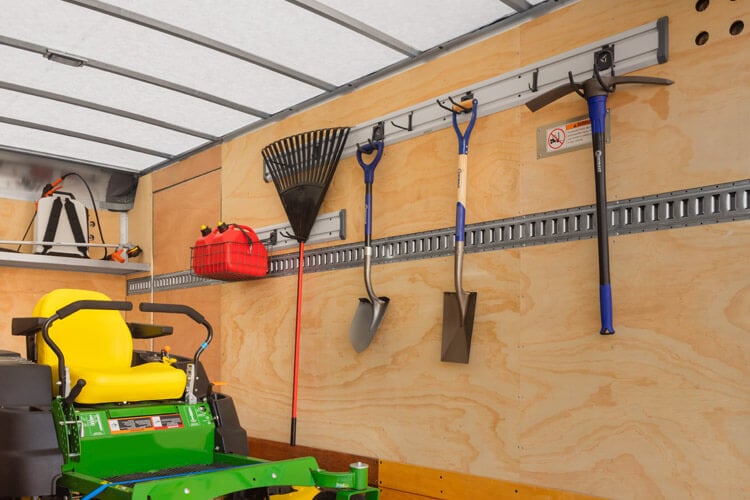

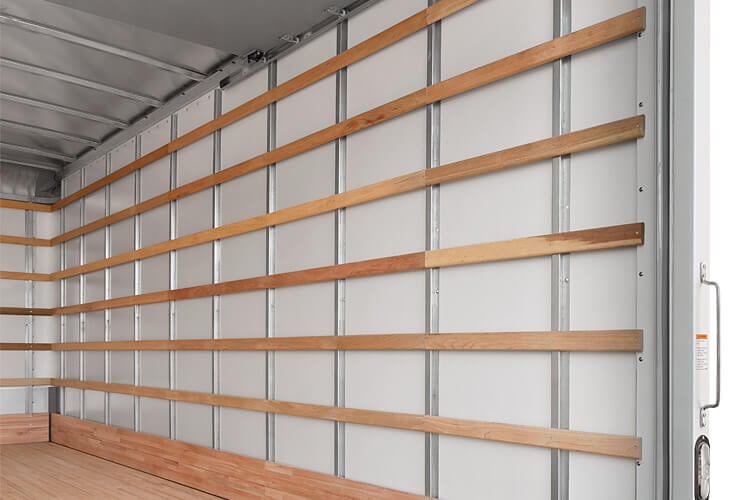

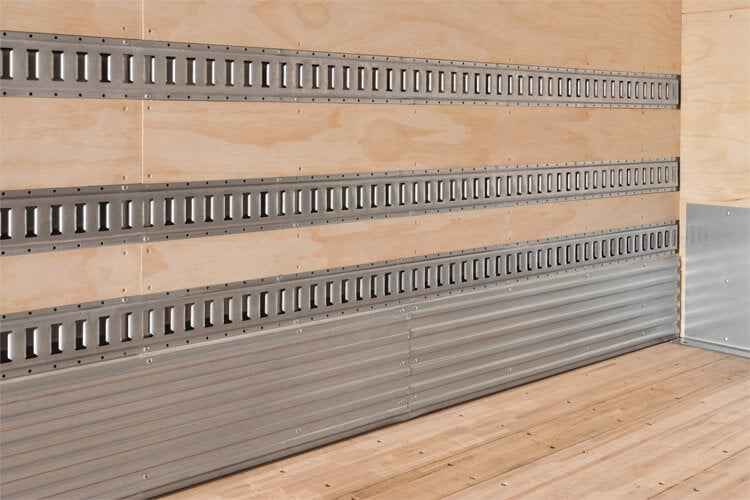

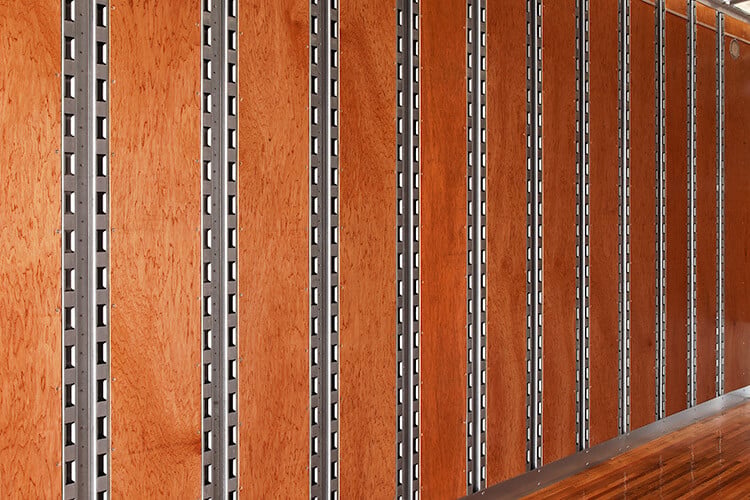

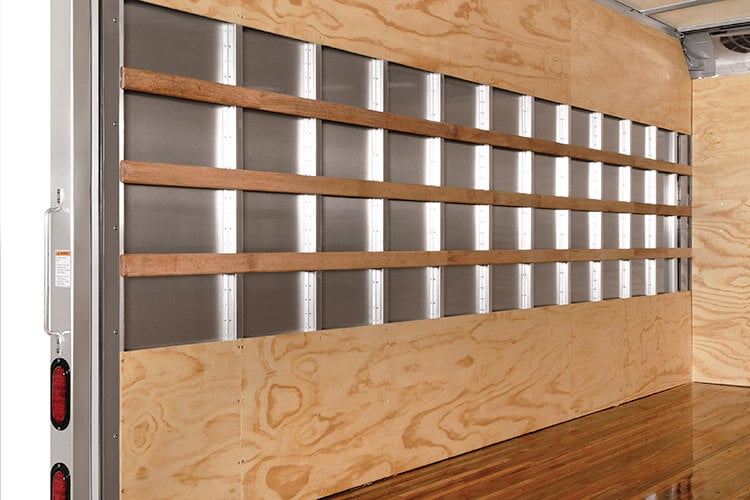

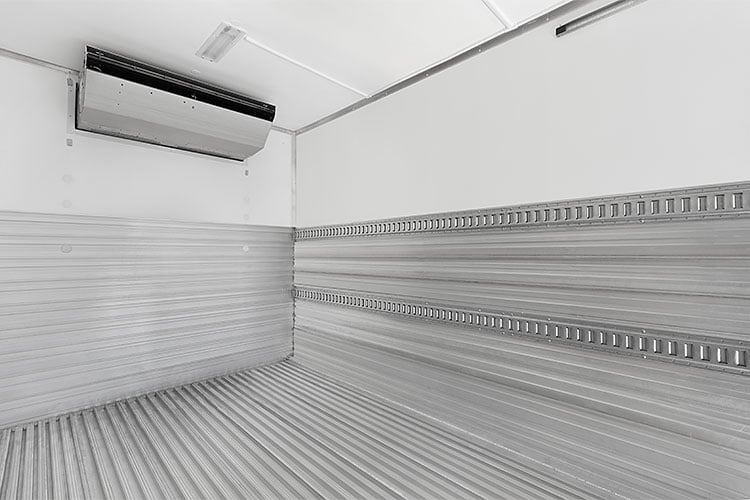

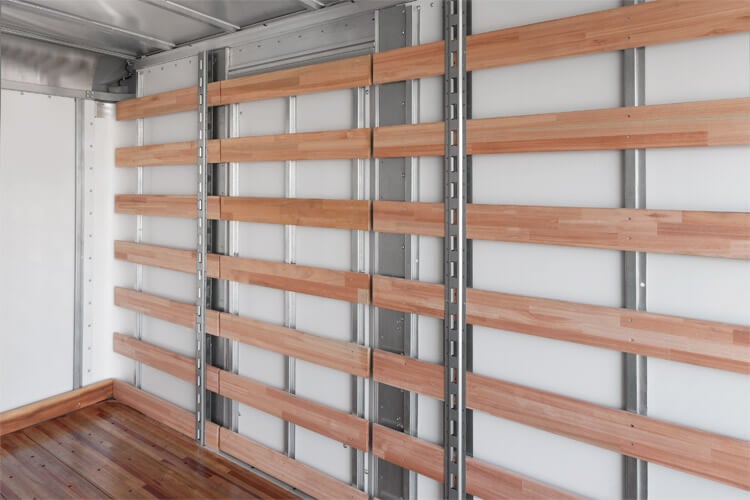

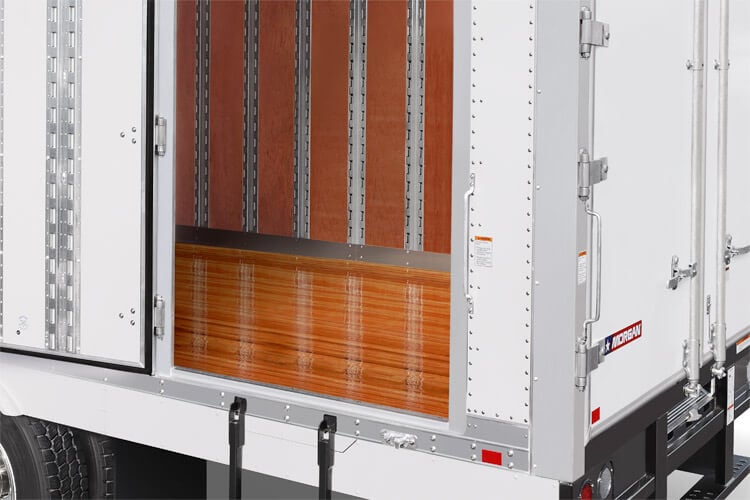

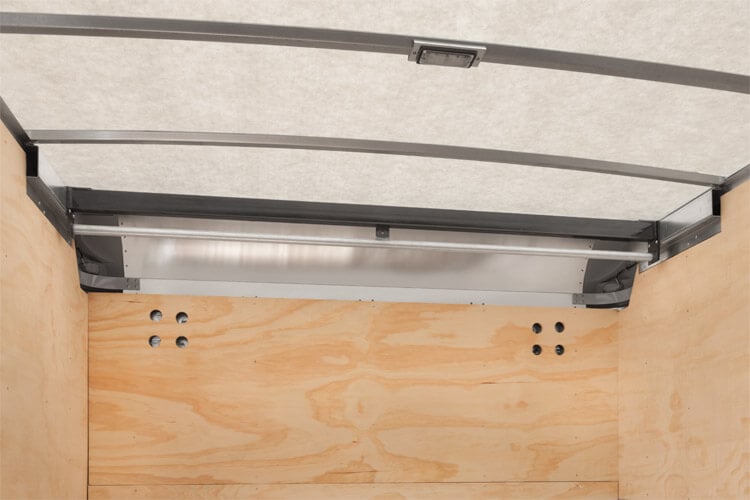

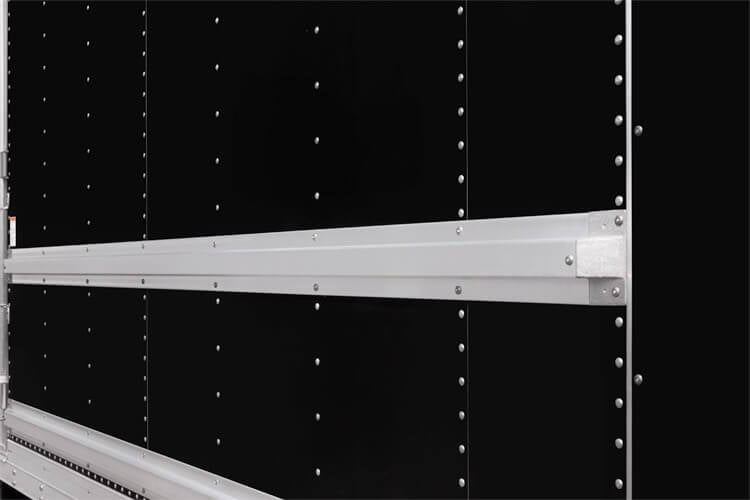

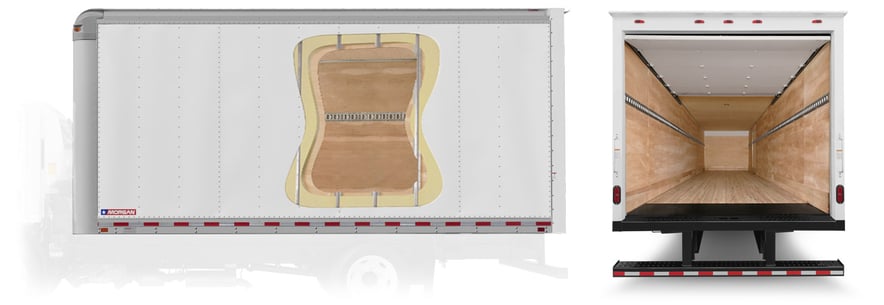

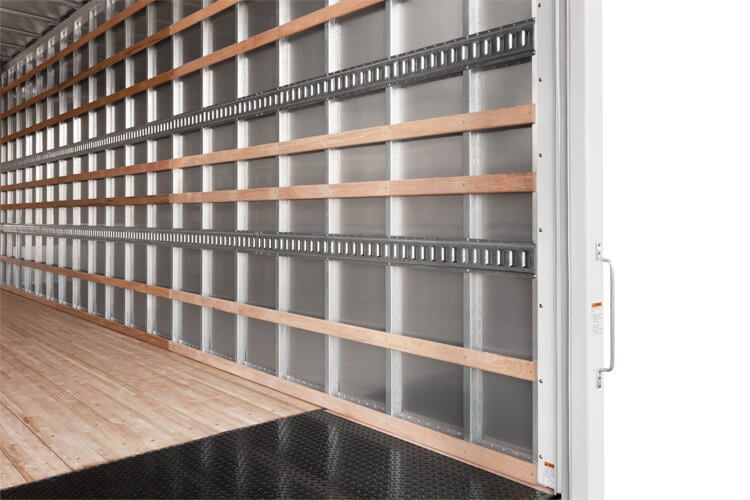

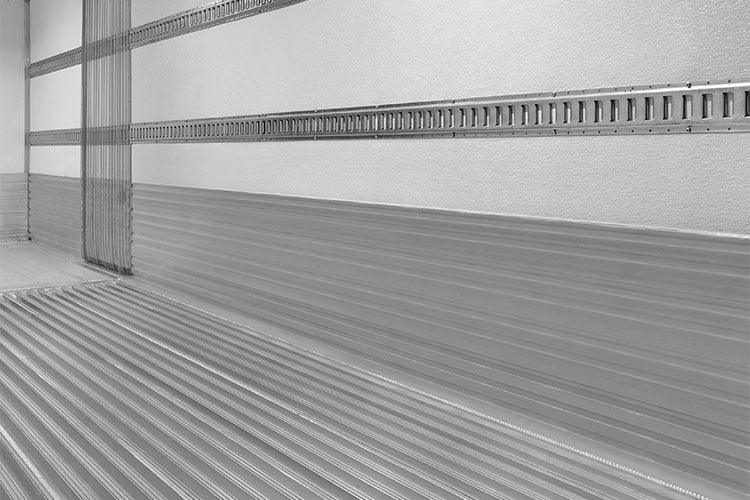

Sidewalls & Front
Wording to come

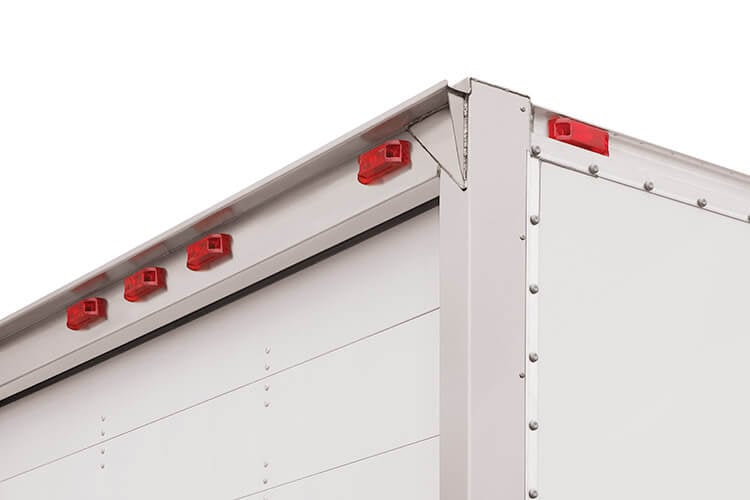

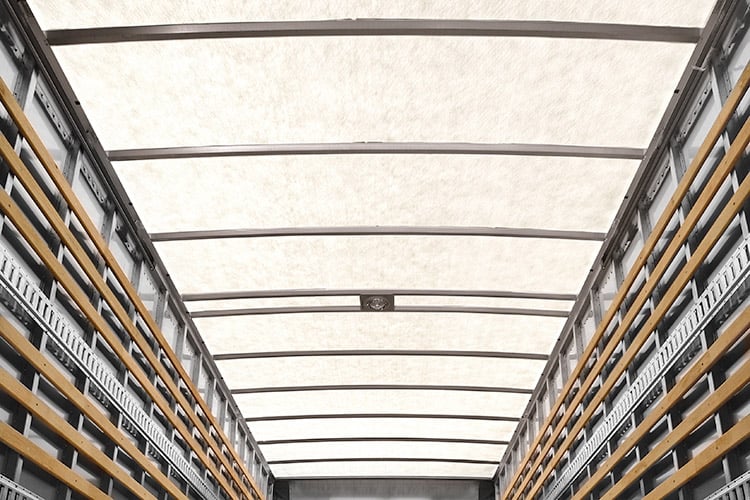

Roof Assembly
Wording to come

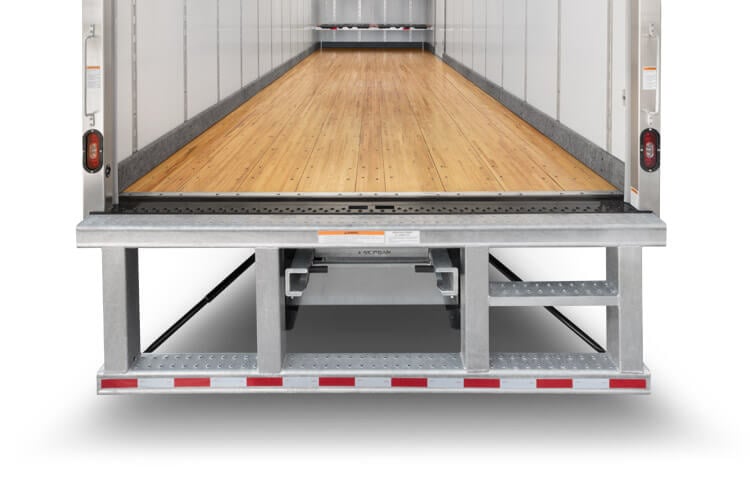

Rear Frame
Wording to come

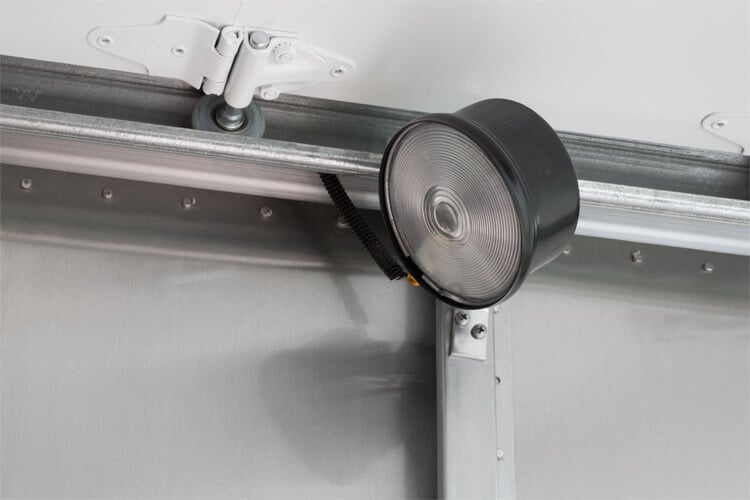

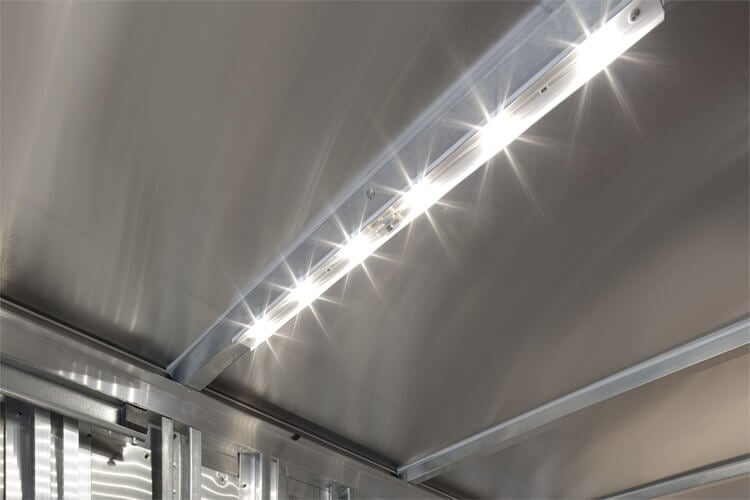

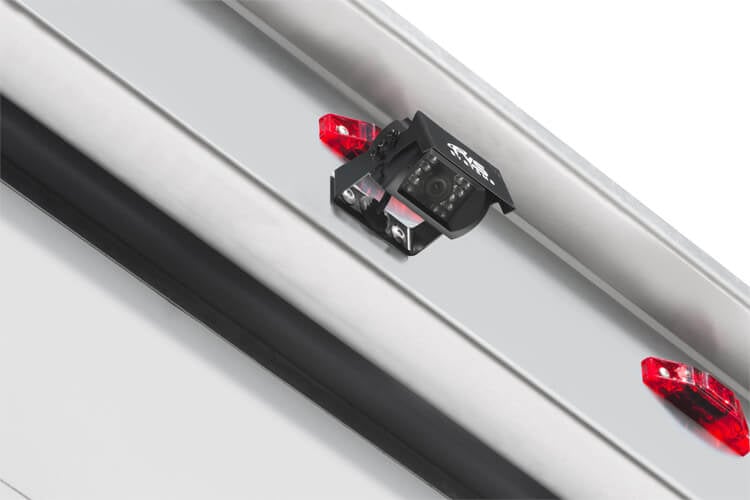

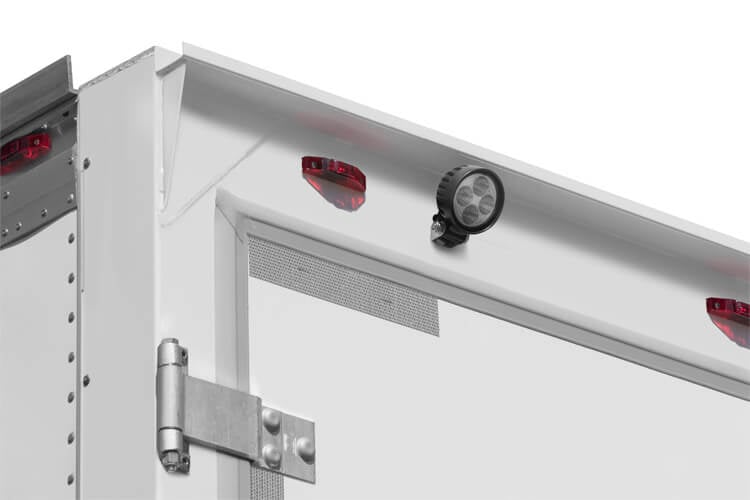

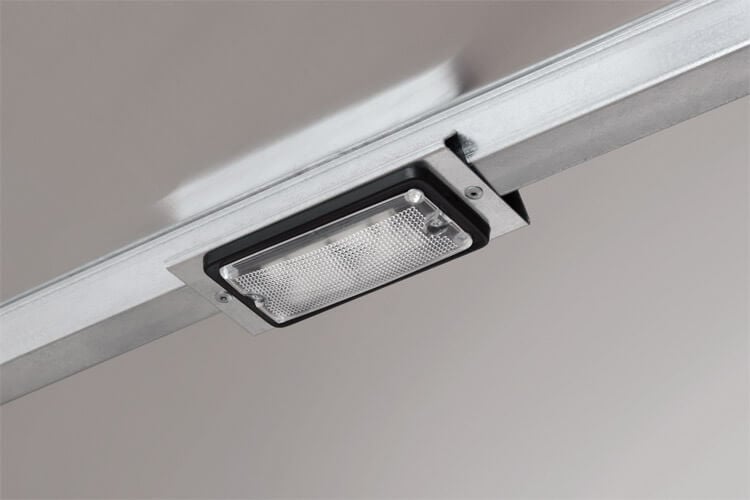

Lights
Wording to come
Rear Door
Wording to come

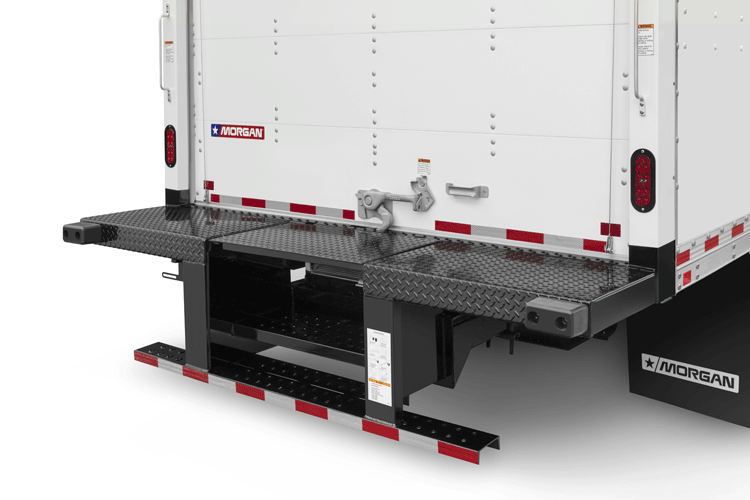

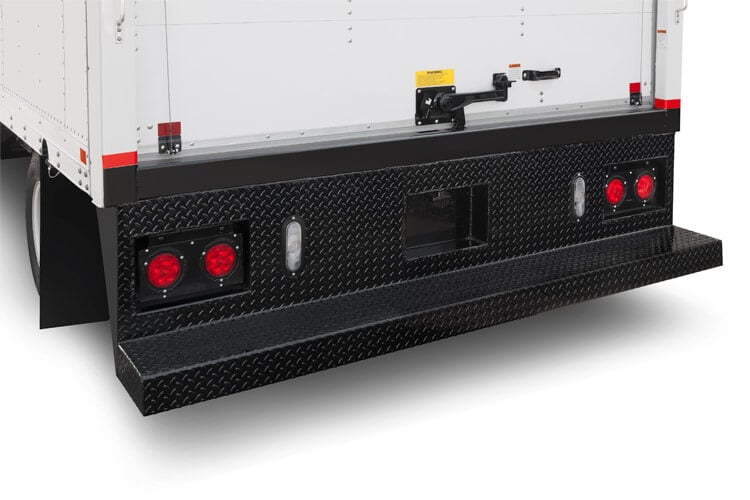

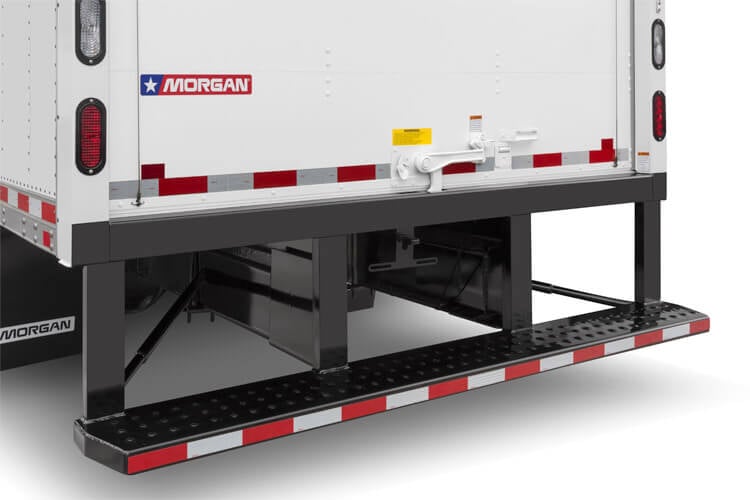

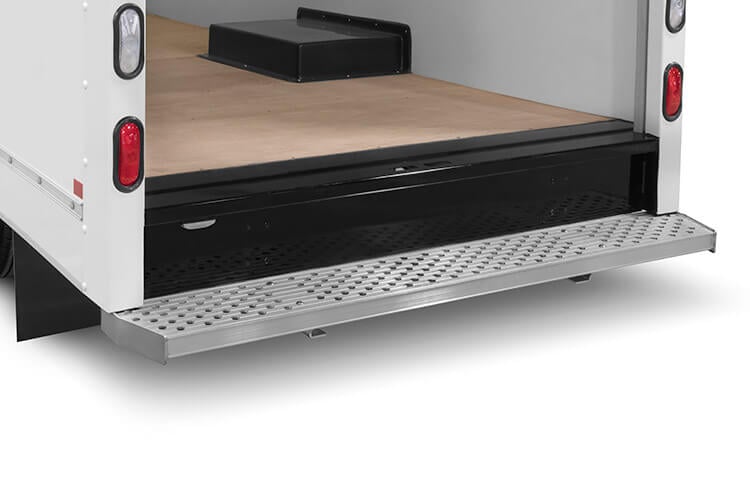

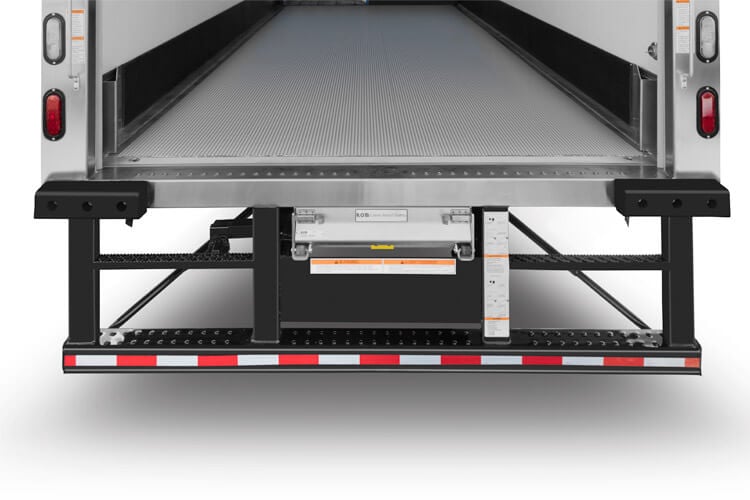

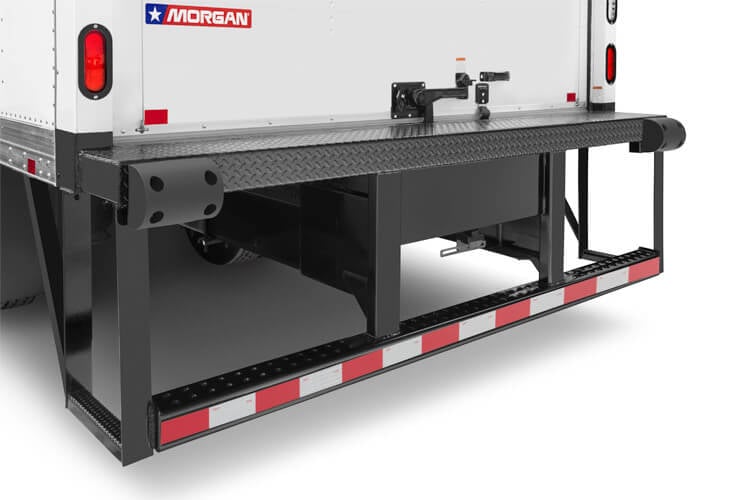

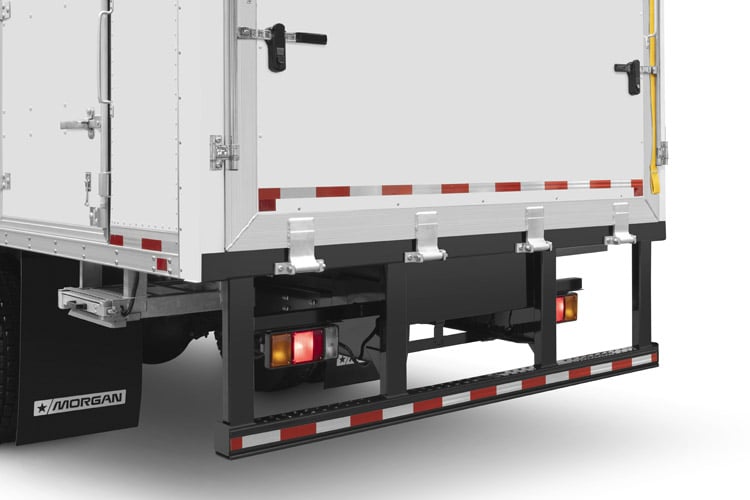

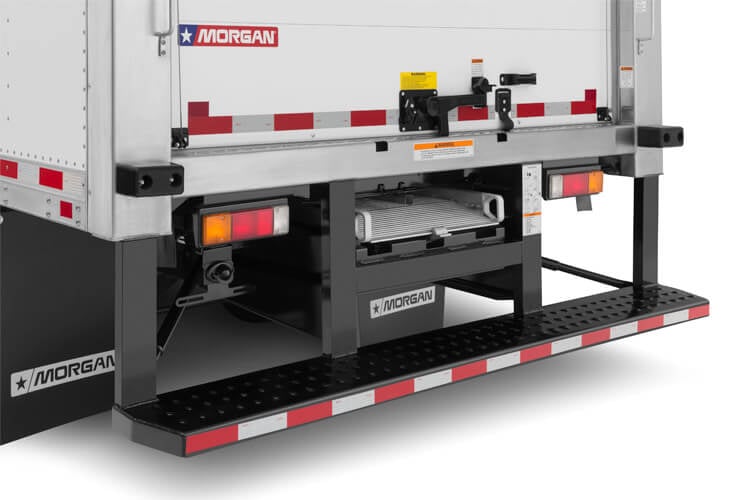

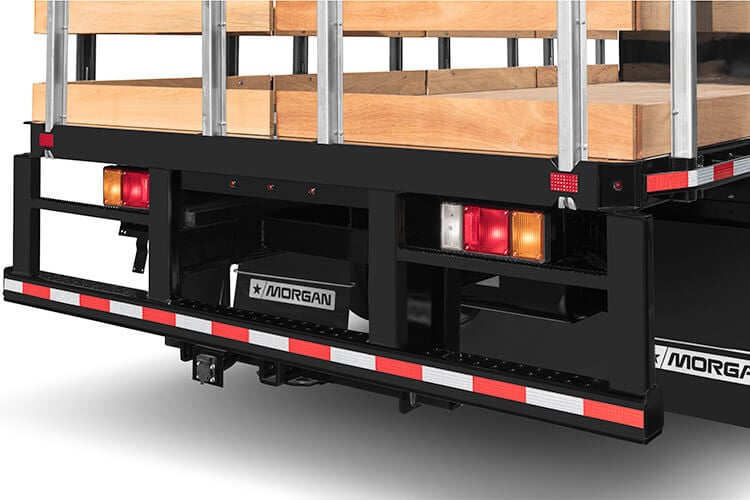

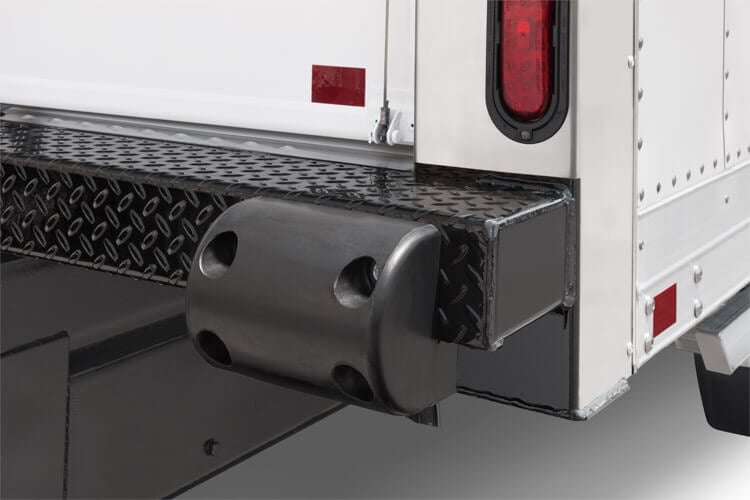

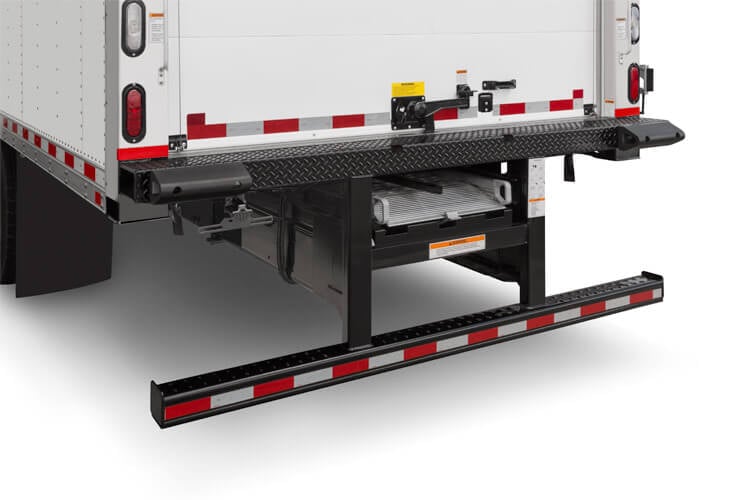

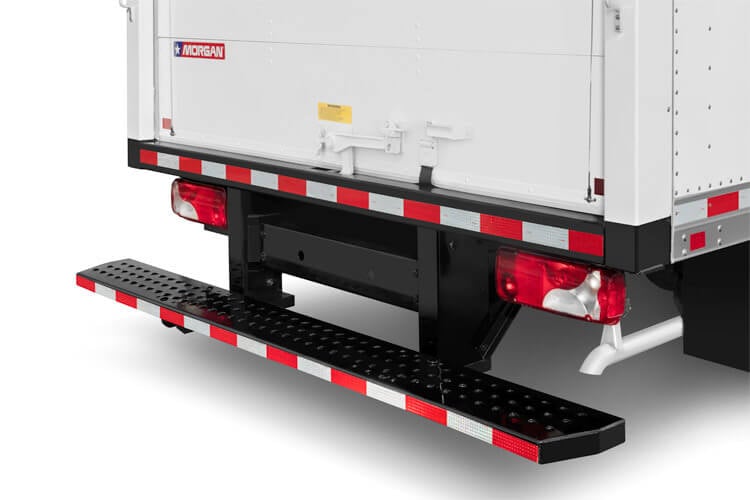

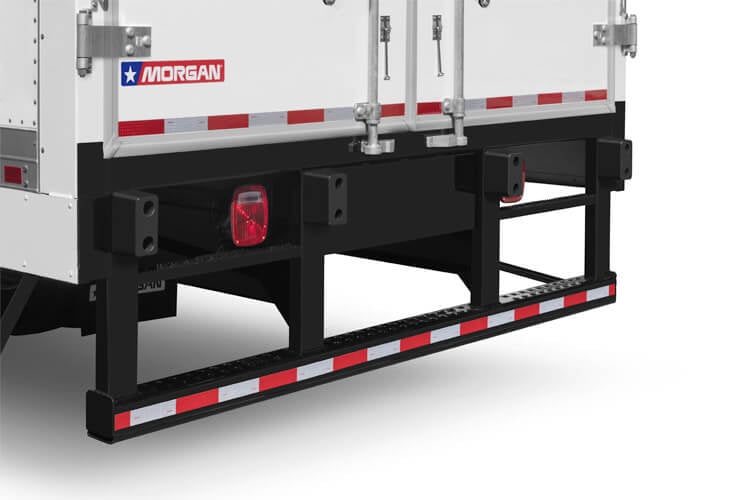

Bumpers
Wording to come
Configure to Your Needs
Dimensional Data
Compare dimensional data and specifications across Gold Star wall construction options to find the right fit for your application.

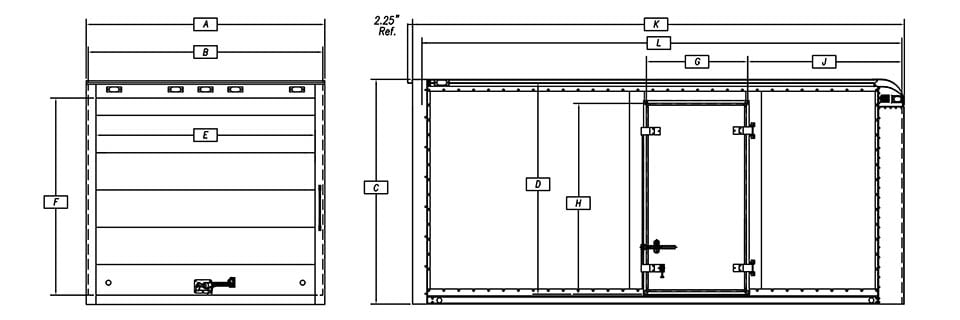

Dimensional Key
- A =
- Overall Width
- B =
- Interior Width (Includes 1/4" Plywood Liner)
- C =
- Exterior Height*
- D =
- Interior Height**
- E =
- Rear Door Opening Width
- F =
- Rear Door Opening Height

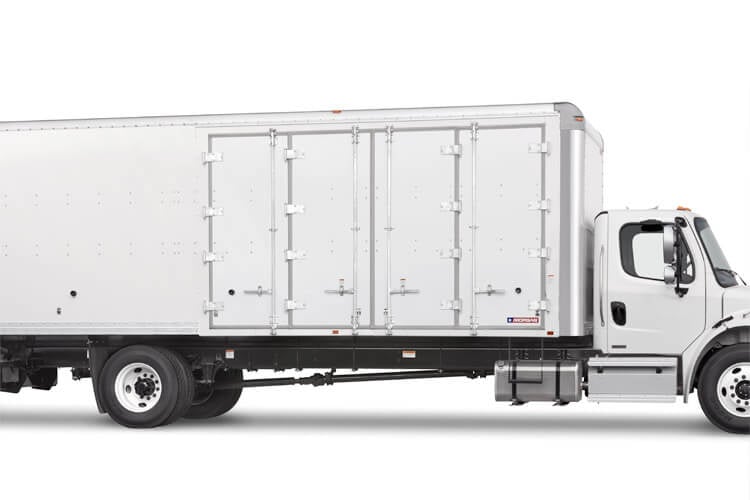

- G =
- Side Door Opening Width
- H =
- Standard Side Door Opening Height
- J =
- Leading Edge Of Side Door To Inside Front Of Body
- K =
- Exterior Length of Body***
- L =
- Inside Front Liner To Inside Rear Door Panel
| BODY MODEL | HEIGHT AND WIDTH DIMENSIONS | REAR ROLL-UP OR SWING DOOR OPENING | SIDE DOOR OPENING SINGLE PANEL | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B (96" Model) | B (102" Model) | C* | D** | E (96" Model) | E (102" Model) | F** | G | H | |
| GVSD79 | 96 OR 102 | 92-3/8 | 98-3/8 | 85-3/8 | 79-1/8 | 88 | 94 | 73-1/4 | 40-11/16 | 78-1/4 |
| GVSD85 | 96 OR 102 | 92-3/8 | 98-3/8 | 91-3/8 | 85-1/8 | 88 | 94 | 79-1/4 | 40-11/16 | 78-1/4 |
| GVSD91 | 96 OR 102 | 92-3/8 | 98-3/8 | 97-3/8 | 91-1/8 | 88 | 94 | 85-1/4 | 40-11/16 | 78-1/4 |
| GVSD97 | 96 OR 102 | 92-3/8 | 98-3/8 | 103-3/8 | 97-1/8 | 88 | 94 | 91-1/4 | 40-11/16 | 78-1/4 |
| GVSD103 | 96 OR 102 | 92-3/8 | 98-3/8 | 109-3/8 | 103-1/8 | 88 | 94 | 97-1/4 | 40-11/16 | 78-1/4 |
| GVSD109 | 96 OR 102 | 92-3/8 | 98-3/8 | 115-3/8 | 109-1/8 | 88 | 94 | 103-1/4 | 40-11/16 | 78-1/4 |
Notes: *1.) Exterior Height Includes Roof Crown But Does Not Include Body Longitudinales. **2.) Subtract 1/4" From Interior Height and Rear Door Opening Height For Bodies With 1-3/8" Floor.

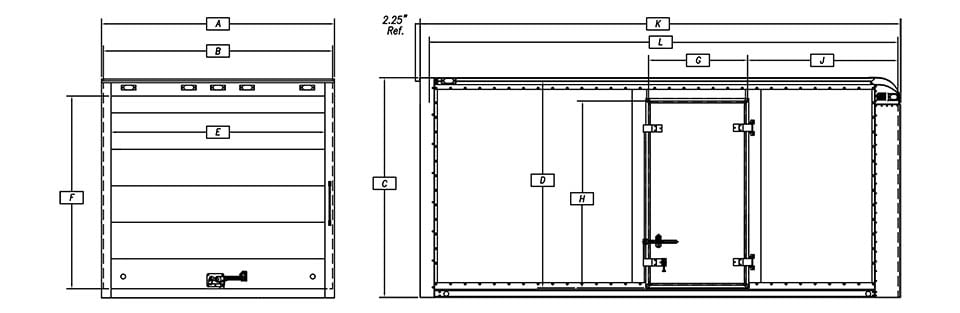

Dimensional Key
- A =
- Overall Width / Model Width
- B =
- Interior Width
- C =
- Exterior Height*
- D =
- Interior Height**
- E =
- Rear Door Opening Width
- F =
- Rear Door Opening Height
- G =
- Side Door Opening Width
- H =
- Side Door Opening Height
- J =
- Leading Edge Of Side Door To Inside Front Of Body
- K =
- Exterior Length of Body***
- L =
- Inside Front Panel To Inside Rear Door Panel
| DIMENSIONAL DATA | HEIGHT AND WIDTH DIMENSIONS | REAR ROLL-UP OR SWING DOOR OPENING | SIDE DOOR OPENING SINGLE PANEL | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B (96" Model) | B (102" Model) | C* | D | E (96" Model) | E (102" Model) | F | G | H | |
| GVMD79 | 96 or 102 | 95 | 101 | 85-3/8 | 79-1/8 | 88 | 94 | 73-1/4 | 40-11/16 | 70-11/16 |
| GVMD85 | 96 or 102 | 95 | 101 | 91-3/8 | 85-1/8 | 88 | 94 | 79-1/4 | 40-11/16 | 76-11/16 |
| GVMD91 | 96 or 102 | 95 | 101 | 97-3/8 | 91-1/8 | 88 | 94 | 85-1/4 | 40-11/16 | 82-11/16 |
| GVMD97 | 96 or 102 | 95 | 101 | 103-3/8 | 97-1/8 | 88 | 94 | 91-1/4 | 40-11/16 | 88-11/16 |
| GVMD103 | 96 or 102 | 95 | 101 | 109-3/8 | 103-1/8 | 88 | 94 | 97-1/4 | 40-11/16 | 94-11/16 |
| GVMD109 | 96 or 102 | 95 | 101 | 115-3/8 | 109-1/8 | 88 | 94 | 103-1/4 | 40-11/16 | 100-11/16 |
Notes: *1.) Exterior Height Includes Roof Crown But Does Not Include Body Longitudinals. **2.) Subtract 1/4" From Interior Height and Rear Door Opening Height For Bodies with 1-3/8" Floor. 3.) Interior Width Based On Morgan Plate Panels Without Scuff.

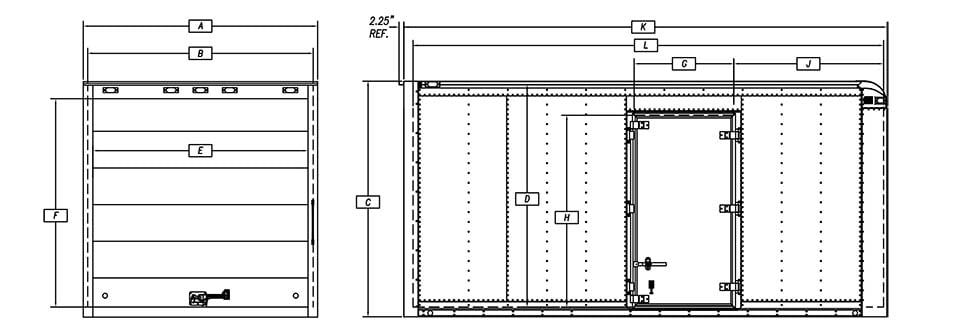

Dimensional Key
- A =
- Overall Width
- B =
- Interior Width
- C =
- Exterior Height*
- D =
- Interior Height**
- E =
- Rear Door Opening Width
- F =
- Rear Door Opening Height
- G =
- Side Door Opening Width
- H =
- Side Door Opening Height
- J =
- Leading Edge Of Side Door To Inside Front Of Body
- K =
- Exterior Length of Body***
- L =
- Inside Front Panel To Inside Rear Door Panel
| DIMENSIONAL DATA | HEIGHT & WIDTH DIMENSIONS | REAR SWING DOOR OPENING | REAR ROLL-UP DOOR OPENING | SIDE DOOR OPENING SINGLE PANEL | SIDE DOOR OPENING DOUBLE PANEL | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C* | D** | E | F | E | F | G | H | G | H | |
| GVFD79 | 96 | 94-1/2 | 85-3/8 | 79-1/8 | 88 | 73-1/4 | 88 | 73-1/4 | 40-11/16 | 70-11/16 | 50-3/8 | 70-11/16 |
| GVFD85 | 96 | 94-1/2 | 91-3/8 | 85-1/8 | 88 | 79-1/4 | 88 | 79-1/4 | 40-11/16 | 76-11/16 | 50-3/8 | 76-11/16 |
| GVFD91 | 96 | 94-1/2 | 97-3/8 | 91-1/8 | 88 | 85-1/4 | 88 | 85-1/4 | 40-11/16 | 82-11/16 | 50-3/8 | 82-11/16 |
| GVFD97 | 96 | 94-1/2 | 103-3/8 | 97-1/8 | 88 | 91-1/4 | 88 | 91-1/4 | 40-11/16 | 88-11/16 | 50-3/8 | 88-11/16 |
| GVFD103 | 96 | 94-1/2 | 109-3/8 | 103-1/8 | 88 | 97-1/4 | 88 | 97-1/4 | 40-11/16 | 94-11/16 | 50-3/8 | 94-11/16 |
| GVFD109 | 96 | 94-1/2 | 115-3/8 | 109-1/8 | 88 | 103-1/4 | 88 | 103-1/4 | 40-11/16 | 100-11/16 | 50-3/8 | 100-11/16 |
Notes: *1.) Exterior Height Includes Roof Crown But Does Not Include Body Longitudinals. **2.) Subtract 1/4" From Interior Height and Rear Door Opening Height For Bodies with 1-3/8" Floor. 3.) Interior Width Based On 1/2" Core FRP Panels (18' - 28' Bodies). Add 1/4" To Interior Width For 3/8" Core FRP Panels (10'-16' Bodies).
Ready for the Next Step?
Find a Morgan Rep
Enter your address or postcode to find your Morgan representative.
Request a Quote
A Morgan representative will help you build the perfect truck body to meet your needs.
Order Your Truck Body
Our team is here to help you find the right Morgan solution for your business.
Pre-Configured Dry Freight Bodies Fast Turnaround | Nationwide Availability

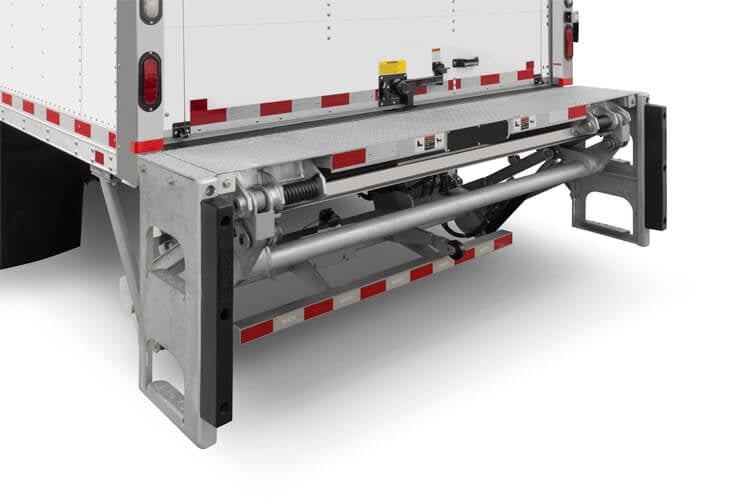

When you need a quality dry freight truck body fast, Morgan's Fastrak program delivers. Choose from pre-configured body packages, multiple sizes, and available liftgate options to get your truck on the road quickly.
Frequently Asked Questions
A cargo van is a smaller commercial vehicle built on a standard van chassis, while a box truck features a separate enclosed cargo body mounted on a truck chassis. Box trucks typically offer greater cargo capacity, easier loading options, and more customization opportunities for delivery, moving, and freight applications.
